Print and Save Document into Database

The Black Ice Software X1 Printer Drivers have a built-in feature to upload the converted documents to a database through an ODBC connection. This feature is available for the ColorPlus X1, PDF X1, Tiff/Monochrome X1 printer driver from version 15.95.

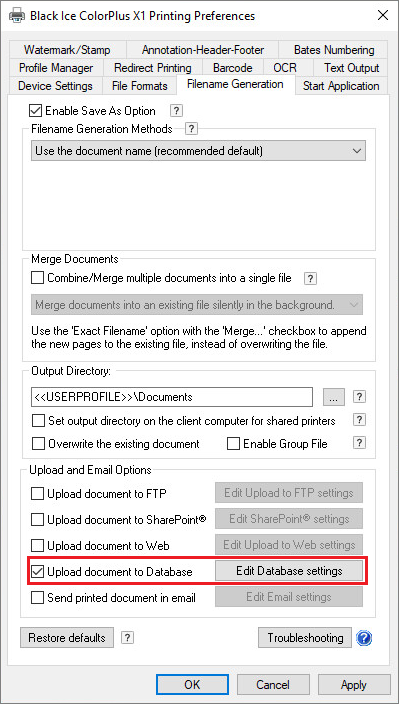

One can enable the Upload document to Database feature in Control Panel > Printers and Devices > right click on the Black Ice Printer Driver > Printing Preferences > Filename Generation Tab > Upload document to Database.

Click on the Edit Database settings button, to configure the uploading preferences.

NOTE: Each user can have separate Upload to Database settings, and if needed, each user can configure separate Agent Printers for different Upload to Database scenarios, with different settings.

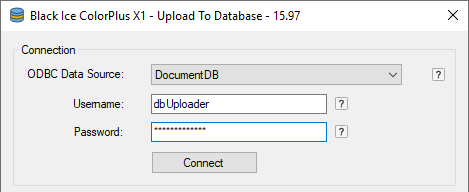

On the appearing window, one can select a configured ODBC data source on the computer, and provide the necessary username and password. For detailed information about how to configure an ODBC data source on the computer, please refer to the following link.

ODBC Data Source: One can select the destination ODBC data source to upload the documents to.

Username: Username for the selected ODBC data source connection.
Limitations: Any digits, letters or special characters.
Length: Must be between 1 and 255 characters.
Validation: Cannot be empty.
Default value: empty.

Password: Password for the selected ODBC data source connection.
Limitations: Any digits, letters or special characters.
Length: Must be between 1 and 255 characters.
Validation: Cannot be empty.
Default value: empty.

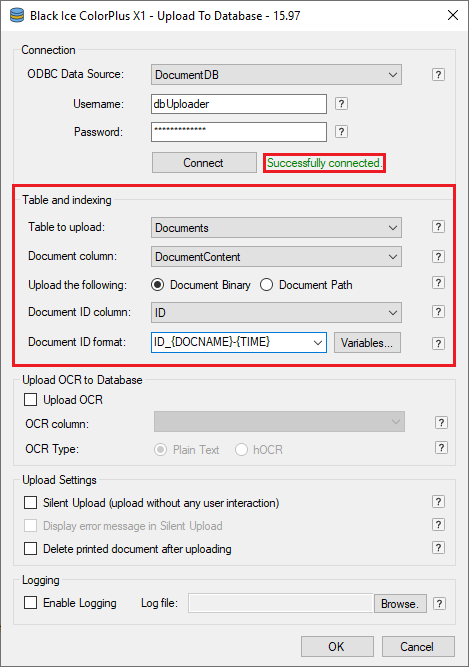

Once the connection is set press Connect button to connect to the database. If the connection is successful, the Table and indexing preferences become enabled.

Table to upload: One can select the table name from the selected ODBC connection to upload the documents into.

Document column: One can select the column where the uploaded documents will be stored.

Upload the following: Select the Document Binary to upload the entire document to the database, or select Document Path to upload only the location and filename of the printed document.

Document ID column: Select the column where the ID/Index of the uploaded document will be stored. The Document ID can be an identifier string allowing users to easily distinguish and identify the uploaded documents.

Document ID format: The Document ID format specifies how the Document ID/Index will look like. One can insert variables, letters, digits, dash (-) and underscore (_) characters.

Limitations: Letters, digits and any of the following characters: } { - _
Length: Must be between 1 and 1000.
Validation: Cannot be empty.
Default value: {DOCNAME}

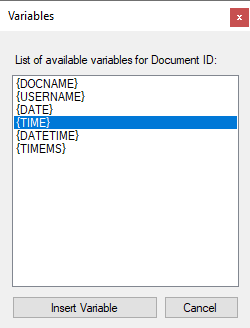

One can insert variables by pressing the Variables… button. The following window appears:

One can insert variables by double-clicking on it, or click on Insert Variable button. The variable will be inserted into the cursor position in the Document ID format field.

The Document ID format can have the following variables, and their combinations:



Name Tag
Document Name {DOCNAME}
User Name {USERNAME}
Computer Name {COMPUTER}
Date {DATE}
Time {TIME}
Date and Time {DATETIME}
Time with Milliseconds {TIMEMS}
Any alphabetical letter, digit or ‘-’ or ‘_’

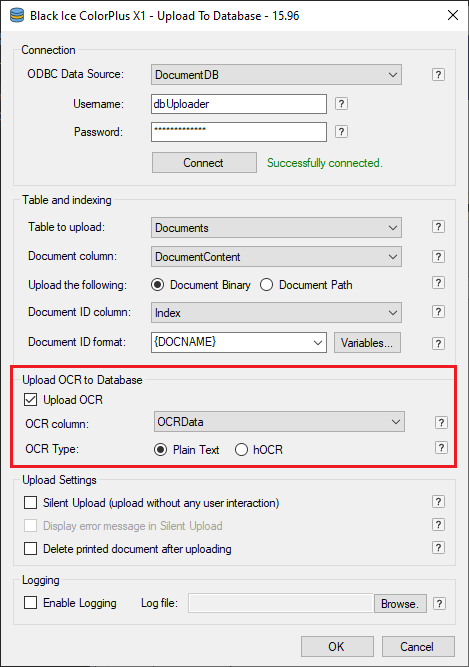

Upload OCR to Database

  • Upload OCR: Enables uploading OCR (Optical Character Recognition) text to the database. When this option is enabled, and the Printer Driver generates OCR text during the printing, the Upload to Database feature will upload the text to the selected OCR column.

  • OCR column specifies the column name where the OCR text will be uploaded.

  • OCR Type specifies the generated OCR format. Possible options:

    • Plain Text type only contains the text information. Use this format if you only need the text without text positions.

    • hOCR type contains an HTML formatted document, which contains text information, positions and alignment. Use this type if you need text, positions and alignment.


Upload Settings

  • Silent Upload: When Silent Upload is enabled, the Upload to Database feature will upload the documents without any user interaction. In Silent Upload, no error or success message will be displayed. Silent Upload is unchecked by default.

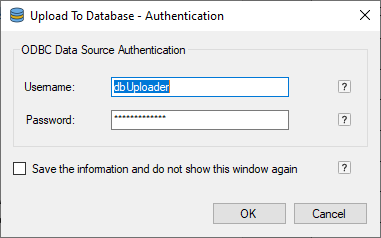

    If Silent Upload is unchecked (disabled), the Upload to Database feature displays the following window; one can specify the username and password for the configured ODBC Data Source.

    Click on the Save the information and do not show this window again checkbox, to save the entered username and password, and turn on Silent Upload.

  • Display error message in Silent Upload option will display the occurring error messages even if Silent Upload is enabled.

  • Delete printed document after uploading option will delete the printed document from the local computer after the upload is finished. The document will be deleted even if the upload failed due to any reason.



Enable logging: If this option is enabled, the Database Uploader will log every uploading into the specified log file. The log file will contain the following information:

  • Date and Time,
  • Error code and message,
  • Username initiated the download
  • Filename
  • ODBC Data Source
  • In case of successful upload, the Document ID/Index

Example of how the log looks like:
11/07/2019 10:49:59 | File successfully uploaded, John, c:\docs\MyDocument.TIF, odbc_Documents, ID_MyDocument_20191107104959222


Click on the OK button to start uploading the document. If the uploading was successful, the following window appears if the silent mode is not enabled:
