TIFF File format

The following list covers the supported TIFF file formats:

  • TIFF JPEG
  • TIFF Uncompressed
  • TIFF Group 3, 1 Dimension
  • TIFF Group 3, 1 Dimension with Fillbits
  • TIFF Group 3, 2 Dimension
  • TIFF Group 4
  • TIFF Packed
  • TIFF Lempel-Ziv & Welch
  • TIFF for CISCO
  • TIFF for Dialogic boards
  • TIFF for NMS boards
  • TIFF for Gammalink boards

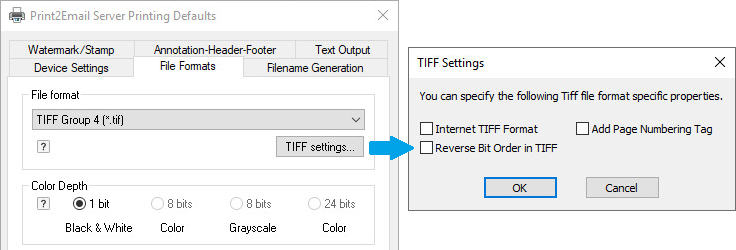

The following settings are only available for TIFF files.

  • Internet TIFF format - If TIFF file format is selected as the output image format and this box is checked, the driver creates a TIFF file that is compatible with the requirements listed in Chapter 3 of RFC 2301 File Format for Internet Fax (which is not part of this document). Chapter 3 of RFC 2301 File Format for Internet Fax lists the required tags for black-and-white faxes. The extra tag the driver includes in the TIFF file if this flag is checked is NEWSUBFILETYPE.
  • Reverse bit order in TIFF - If this box is checked, the driver saves TIFF images with reverse bit order and also sets the value of the FILLORDER tag in the image file to Reverse. GammaLink-compatible TIFF output requires this setting to be checked, because they can only send TIFF images with reverse bit order.
  • Add Page Numbering Tag - If this box is checked, the driver sets the page number tag of every page in the output TIFF file.
