Save As Dialog

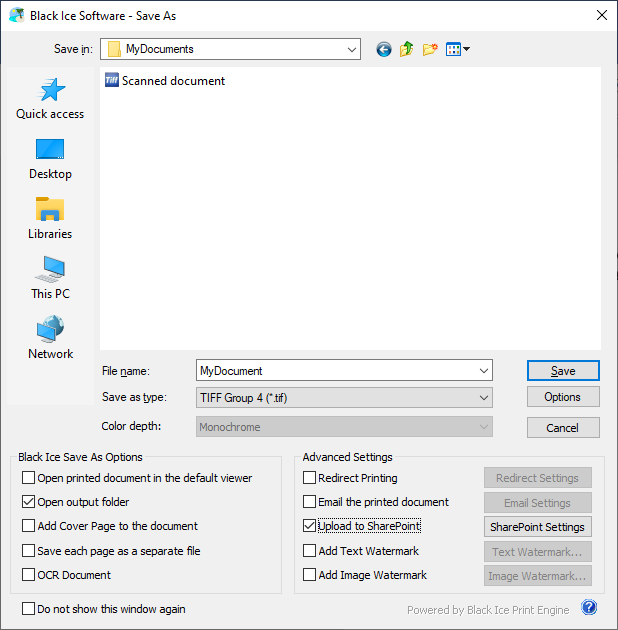

When the Enable Save As Option is selected in the Printing Preferences or Black Ice Printer Manager, the Save As dialog is displayed each time before printing the file. The Save As dialog is very similar to the regular Windows Save As dialog, except that it contains additional Black Ice options.

Options - For certain file formats additional settings can be specified. Available options change according to the selected file format.

File Format Options include
PNG (*.png)
GIF (*.gif)
TIFF JPEG (*.tif)
TIFF Group 4 (*.tif)

Internet TIFF Format, Add Page Numbering Tag, Reverse Bit Order

For more information, refer to TIFF Settings .

TIFF Group 3, 1 Dimension (*.tif)
TIFF Group 3, 1 Dimension, with Fillbits (*.tif)
TIFF Group 3, 2 Dimension (*.tif)
TIFF Packed (*.tif)
TIFF Lempel-Ziv & Welch (*.tif)
TIFF Uncompressed (*.tif)
TIFF for CISCO (*.tif)
TIFF for Dialogic boards (*.tif)
TIFF for NMS boards (*.tif)
TIFF for Gammalink boards (*.tif)
HTML with GIF (*.htm)
HTML with PNG (*.htm)
HTML with BMP (*.htm)
Microsoft Bitmap (*.bmp)
PCX (*.pcx)
INTEL DCX (*.dcx)
IBM MMR IOCA (*.tmp)
CALS (*.cg4)

Color Depth - This option sets the color depth of the generated image. The value can be 1 bit, 8 bits, 8 bits grayscale and 24 bits. Certain file formats do not support all the available color depth options.

Encrypt with password - When enabled, users are able to generate encrypted PDF documents even if the Encrypt the printed document using a password option is disabled on the Printer Manager > General tab. The user will be prompted with the “Encrypt with Password” window to enter a password for the printed document and select the protection type of Viewing and Editing. If no encryption is selected on the PDF Settings > Security tab, the document will be encrypted with 256-bit AES encryption (Acrobat X or later). The password must be a maximum of 32 characters. To read more about PDF encryption, please see the Security options section of the manual.

Open printed document using the default viewer - When enabled, the generated output document opens in the default program for that file type (extension).

Open output folder - If this option is enabled, the designated output directory opens in Windows Explorer after the print job is completed.

Save each page as separate file - When this option is enabled, the Printer Driver prints every page of a multipage document into a separate file.

For example:

If the user prints a four-page document (e.g., MyDocument.doc) into TIFF file format, each page will be saved into a separate TIFF document. The first page will be generated with the original file name, and subsequent files will include an underscore and three digits in their names indicating the page numbers. The following output files will be generated:

MyDocument.tiff

MyDocument_002.tiff

MyDocument_003.tiff

MyDocument_004.tiff

Save As Options - Advanced Settings
