Configure Barcode Printing

Under the Barcode tab (Start > Control Panel > Printers and Devices > right click on the Black Ice Printer Drivers X1 > Printing Preferences > Barcode tab) the user can configure the value of the printed barcode by adding the text directly, input a file that contains the desired barcode value, or using text from the printed page.

There are three distinct ways to add a barcode to a printed document.

·         Text Input: Using predefined static data to be converted to a barcode and printed on every page.

·         File Input:Reading a text file during printing and converting the content of the file to a barcode. The barcode is placed on the printed document. The content of the text file can be changed for every page and before or after printing using the printer driver API.

·         Extract Text (Using Regular Expression parser): The content of the printed document page is converted to a barcode, and the barcode is placed on the printed document. Using a regular expression to parse the content of the printed document, the content is converted to a barcode, and the barcode is placed on the printed document. If there is no regular expression, the whole content of the page is converted to a barcode.

·         Use Embedded Text: When the “Use Embedded Text” option is selected, the Printer Driver will recognize special character sequences which starts with two ‘#’ characters on the printed document to extract specific information after the two ‘#’ characters and print it on the barcode. These special character sequences can be used to remove or alter specified texts and write it in the printed barcode (for example to write the Total price and Date on the barcode when printing an invoice).

NOTE: When using “Insert a page in front of the printed document with Barcode” or “Add barcode to first page only” option, then the Embedded Text must be on the first page of the printed document.

Text Input

If the user selects Text Input and types the desired text, the barcode is printed with this value.

NOTE: Every barcode standard supports different input values, and if the user types invalid characters, an error dialog pops up when the user clicks on the OK button.

File Input

If the user selects File Input and browses the desired text file, the X1 Printer Driver uses the content of the file as Value on the printed barcodes. The required type of the selected file depends on the barcode standard.

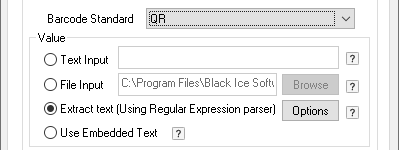

Extract Text (using Regular Expression parser)

If the user selects this option, the X1 Printer Driver uses the text from the printed page as the value of the barcode. However, to extract only specific data from the printed page to be used as the value of the barcode, one needs to create a Regular Expression configuration file.

To extract only specific data from the printed page to be the barcode, one can use a Regular Expression. The Regular Expression is a specific pattern that provides flexible means to match (that is, specify and recognize) strings of text, such as words, particular characters, or patterns of characters. For more information about Extract text (using Regular Expressions parser), refer to the Barcode Printing using regular expressions section.

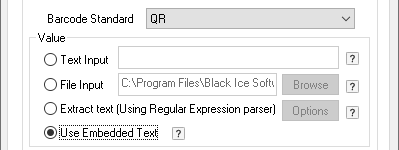

Use Embedded Text

When the “Use Embedded Text” option is selected, the Printer Driver will recognize special character sequences which starts with two ‘#’ characters on the printed document to extract specific information after the two ‘#’ characters and print it on the barcode. These special character sequences can be used to remove or alter specified texts and write it in the printed barcode (for example to write the Total price and Date on the barcode when printing an invoice).

The recognized command sequences are as follows:

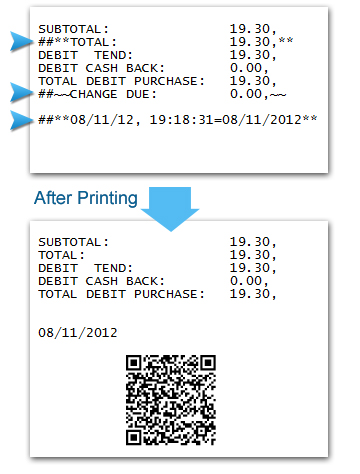

For Example;

(The barcode; TOTAL: 19.30, CHANGE DUE: 0.00, 08/11/2012)
