The current Dialogic driver is System Release 6.0.
Please Note: If you are using a digital board from Dialogic, the Global Call API must also be installed and configured.
You can download the latest Dialogic Drivers here.
1. In the Fax menu choose Open and select Dialogic channel… option.

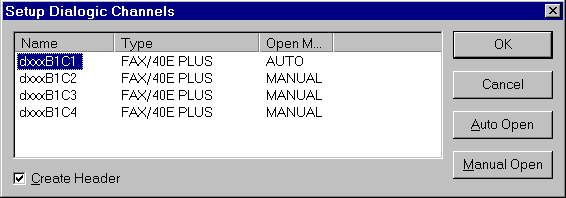

2. The Setup Dialogic Channels window will appear.
3. Specify if you want the channel(s) to automatically or manually open at startup. If manual is selected, you have to manually open the channels every time you want to broadcast. If auto is selected, the channels will open every the software is launched. Please note: If the channels are set to open manually you will not be able to schedule broadcasts.
4. Click on Auto Open to open the selected channel(s) automatically at startup.
5. Click on Manual Open to open the selected channel(s) manually after the program starts.
The following settings are global, so they are common to all listed channels.
6. Check the Create Header check box if you would like a header at the top of every fax page.
7. Click on OK. The settings are activated immediately. You can verify that the ports are open by selecting the “Fax” menu item and “Open” ? “Dialogic Channel”. You can see what ports are open in the dialog box.
