Available Black Ice Printers
This option appears in all tabs of the Printer Manager. Select the Printer Driver to be modified from the drop-down menu. Modifications only apply to the selected Printer Driver.
Printing Preferences - Select this button to open the Printing Preferences dialog for the selected Printer Driver.

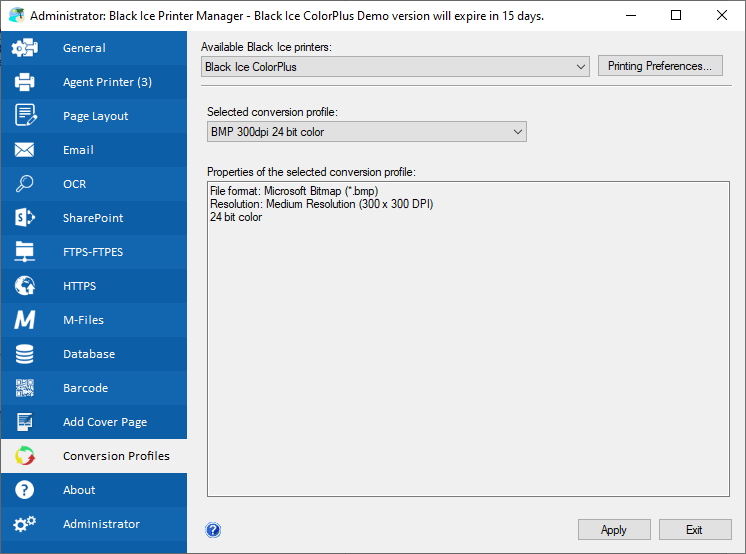

Selected Document Conversion Profile
This drop-down menu contains several pre-defined output formats for general printing. The user can save several printer settings, and then simply select them later to use specific settings without having to manually change the settings every time.
The list and the profile settings can be edited in the Printing Preferences under the Profile Manager tab.
Available Conversion Profiles:
|
Profile description |
Available in the listed Black Ice printer drivers |
|
Convert to Fax Fine Resolution: File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (200 x 200 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to Fax Fine Resolution 2: File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (204 x 196 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to Fax Standard Resolution: File format: TIFF Group 3 1D (*.tif) Resolution: Standard Fax Resolution (204 x 98 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Archive document to low resolution TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Convert to display optimized TIFF: File format: TIFF Group 4 (*.tif) Resolution: Medium Resolution (300 x 300 DPI) |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Archive document to low resolution PDF: File format: PDF (*.pdf) Resolution: Low Resolution (200 x 200 DPI) Black and White |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert documents to black and white PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert to display optimized PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Convert to display optimized JPEG: File format: JPEG (*.jpg) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, Color Printer Drivers |
|
Convert to display optimized BMP: File format: Microsoft Bitmap (*.bmp) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Available in ColorPlus, ColorPlus X1, Color Printer Drivers |
|
Merge documents to a single PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable Combine/Merge multiple documents into a single file |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
Merge documents to a single TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Combine/Merge multiple documents into a single file |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
OCR documents and convert to PDF: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable OCR |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 Printer Drivers |
|
OCR documents and convert to TIFF: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable OCR |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Split multipage TIFF documents to single page: File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Save each page as separate file |
Available in ColorPlus, ColorPlus X1, TIFF, TIFF X1, Color Printer Drivers |
|
Split multipage PDF documents to single page: File format: PDF (*.pdf) Resolution: Medium Resolution (300 x 300 DPI) Black and White Enable Save each page as separate file |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1 |
|
Text Output - Extract text from documents: Generate Text output enabled, Output disabled, Group file disabled, Unicode/Eastern char support enabled. |
Available in ColorPlus, ColorPlus X1, PDF, PDF X1, TIFF, TIFF X1, Color Printer Drivers |
