Barcode tab

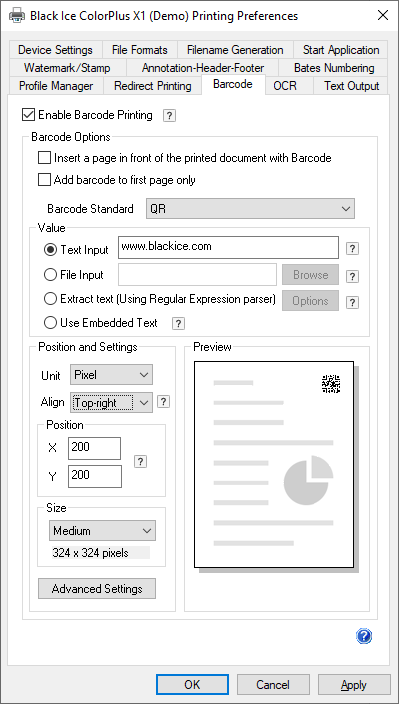

One can specify the creation of several barcode types on the printed documents under the Barcode tab ( Start > Control Panel > Printers and Devices > right click on the Black Ice X1 Printer Drivers then click on the Printing Preferences and click on the Barcode tab ). Every aspect of the printed barcodes can be configured, such as Value, Barcode Standard, Position, Alignment, Size, Rotation and more.

If the Create Barcode checkbox is checked, the X1 Printer Driver will print the barcode on the document with the specified configuration values.

Barcode Option > Insert a page in front of the printed document with Barcode - If this option is checked, the X1 Printer Driver inserts a new empty page to before the first page of the document, and prints the barcode on the inserted page.

Barcode Option > Add barcode to first page only – If this option is checked, the X1 Printer Driver will print the barcode only on the first page of the document. If the option is unchecked, every page of the document will be printed with the configured barcode.

Type > Barcode Standard - From the Barcode Standard dropdown list the User can select the desired barcode standard, which will be printed to the document.

The Black Ice Software X1 Printer Drivers can write the following barcode formats:

Click here for more information about Supported Barcode Standards.

Value > Text input, File input and Use text from the printed page

The User can specify the value of the printed barcode by adding the text directly, inputting a file which contains the desired barcode value, or using text from the printed page.

There are four distinct ways to add a barcode to a printed document.

·         Text Input: Using predefined static data to be converted to a Barcode and printed on every page.

·         File Input:Reading a text file during printing and converting the content of the file to Barcode. The Barcode is placed on the printed document. The content of the text file can be changed for every page or before/after printing using the printer driver API.

·         Extract Text (Using Regular Expression parser): The content of the printed document page is converted to Barcode and the barcode is placed on the printed document. Using a regular expression to parse the content of the printed document, the content is converted to Barcode and the barcode is placed on the printed document. If there is no regular expression, the whole content of the Page will be converted to barcode.

·         Use Embedded Text: When the “Use Embedded Text” option is selected, the Printer Driver will recognize special character sequences which are starts with two ‘#’ characters on the printed document to extract specific information after the two ‘#’ characters and print it on the barcode. These special character sequences can be used to remove or alter specified texts and write it in the printed barcode (for example to write the Total price and Date on the barcode when printing an invoice).

NOTE: When using “Insert a page in front of the printed document with Barcode” or “Add barcode to first page only” option, then the Embedded Text must be on the first page of the printed document.

For more information about Text Input and File input, please see the Configure Barcode Printing  section or see the Barcode Printing using regular expressions section for Extract Text (using Regular Expressions parser) details.

Positions and Settings > Unit, Align and Position and Preview

At the Positions and Settings tab, the User can specify the position and the alignment of the barcode. The type of unit also can be changed to Pixels, mm/10, inch/100.

At the Preview, the User can see the configured arrangement and size of the barcode on the printed document.

Size > Small, Medium, Large and Custom

The User can specify the size of the barcode to Small, Medium, Large and Custom. The related configurations in the Advanced Settings will be automatically synchronized if the size is changed by the User, and vice-versa.
