How to use Imaging functions in .NET WPF applications



Developers can integrate the Document Imaging functionality in a .NET WPF application in the same way as in a WinForms application.

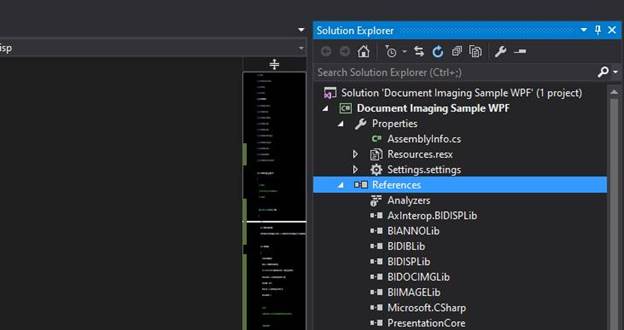

One has to add the ActiveX controls to the project References in Visual Studio Solution Explorer:



cid:image005.jpg@01D5E02E.D79A2AA0



In order to use the Document Imaging BiDisp Control, in a WPF application, one has to use the WindowsFormHost class from System.Windows.Forms.Integration namespace in the WindowsFormsIntegration.dll assembly.



For more information about the WindowsFormHost class, please refer to the following link:

https://docs.microsoft.com/en-us/dotnet/api/system.windows.forms.integration.windowsformshost?view=netframework-4.8



This class is able to load WinForm controls, and it is inherited from WPF UIElement, allowing developers to place the control on a WPF user interface.



The following code demonstrates how to use the BiDisp with WindowsFormHost.

The MainWindow.xaml.cs contains the following code:



public partial class MainWindow : Window

    {

        public AxBIDISPLib.AxBIDisp BiDisp;

        public BIDIBLib.BIDIB BiDib;

        System.Resources.ResourceManager resources = new System.Resources.ResourceManager(typeof(MainWindow));



        public MainWindow()

        {

            InitializeComponent();

            BiDisp = new AxBIDISPLib.AxBIDisp();

            ((System.ComponentModel.ISupportInitialize)(this.BiDisp)).BeginInit();

            BiDisp.Location = new System.Drawing.Point(192, 408);

            BiDisp.Name = "BiDisp";

            BiDisp.Size = new System.Drawing.Size(100, 50);

            BiDisp.TabIndex = 2;



            //WindowsFormHost

            System.Windows.Forms.Integration.WindowsFormsHost host = new System.Windows.Forms.Integration.WindowsFormsHost();

            host.Child = BiDisp;

            RootGrid.Children.Add(host);

            ((System.ComponentModel.ISupportInitialize)(this.BiDisp)).EndInit();

            BiDib = new BIDIBLib.BIDIB();



            //Displaying an image on the user interface

            long dib = BiDib.LoadDIBFromFile(@"c:\temp\myimage.bmp"); //load a document from the hard-drive.

            BiDisp.hDib = dib;



        }

    }



The MainWindow.xaml contains the following code:



<Window x:Class="Document_Imaging_Sample_WPF.MainWindow"

        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

        xmlns:wf="clr-namespace:System.Windows.Forms;assembly=System.Windows.Forms"

        xmlns:local="clr-namespace:Document_Imaging_Sample_WPF"

        mc:Ignorable="d"

        Title="MainWindow" Height="350" Width="525">

    <Grid x:Name="RootGrid">

    </Grid>

</Window>

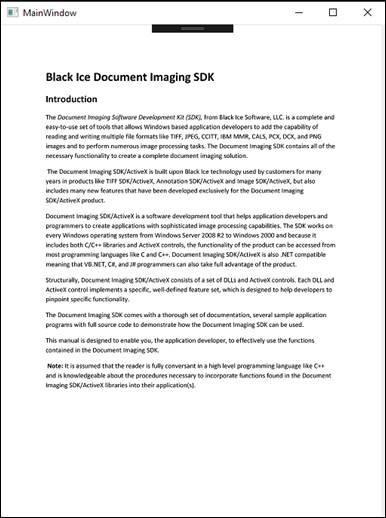

When running the WPF application, the LoadDIBFromFile function call will load the BMP file from the specified location, and display it on the application User Interface.
