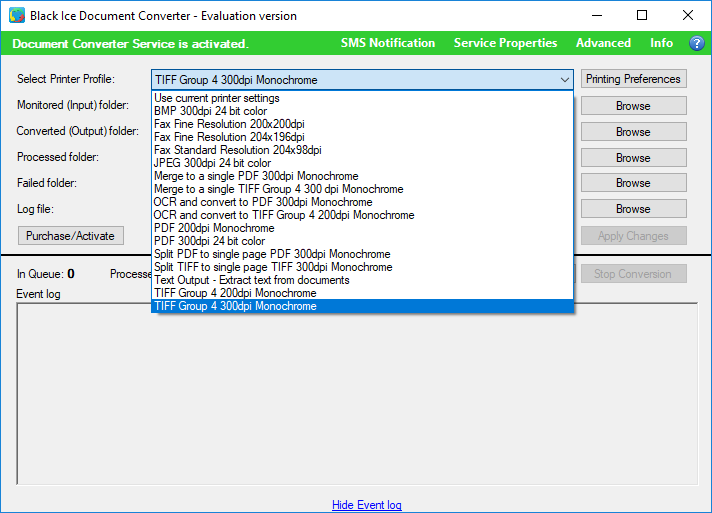

The Document Converter Server can be configured by selecting one of the predefined profiles from the Select Printer Profile list:
In case of the desired configuration is not among the built-in predefined profiles, one can create new profiles with any Printer Driver configuration. For the detailed step-by-step guide of how to create new profiles, please refer to the Creating Black Ice Profile File section.
The list of the available built-in Predefined Profiles is the following:
Profile description |
Details |
Fax Fine Resolution 200x200dpi:
|
File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (200 x 200 DPI) |
Fax Fine Resolution 204x196dpi:
|
File format: TIFF Group 3 1D (*.tif) Resolution: Fine Fax Resolution (204 x 196 DPI) |
Fax Standard Resolution 204x98dpi:
|
File format: TIFF Group 3 1D (*.tif) Resolution: Standard Fax Resolution (204 x 98 DPI) |
TIFF Group 4 200dpi Monochrome:
|
File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) |
TIFF Group 4 300dpi Monochrome:
|
File format: TIFF Group 4 (*.tif) Resolution: Medium Resolution (300 x 300 DPI) |
JPEG 300dpi 24 bit color:
|
File format: JPEG (*.jpg) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
BMP 300dpi 24 bit color:
|
File format: Microsoft Bitmap (*.bmp) Resolution: Medium Resolution (300 x 300 DPI) 24 bit color |
Merge to a single TIFF Group 4 300 dpi Monochrome:
|
File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Combine/Merge multiple documents into a single file
NOTE: Merging documents feature is only recommended if only one printer is used for the document conversion. |
OCR and convert to TIFF Group 4 200dpi Monochrome:
|
File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable OCR |
Split TIFF to single page TIFF 300dpi Monochrome:
|
File format: TIFF Group 4 (*.tif) Resolution: Low Resolution (200 x 200 DPI) Enable Save each page as separate file |
Text Output - Extract text from documents
|
Generate Text output enabled, Output disabled, Group file disabled, Unicode/Eastern char support enabled. |
