The Black Ice Printer Driver supports a total of 177 predefined paper sizes, including large format paper sizes, and label printer paper sizes (see Available Paper Sizes). Additionally, Black Ice Printer Drivers allow unique paper sizes to be defined in pixels, mm, or inches. The page sizes range from envelopes to large E-size pages.

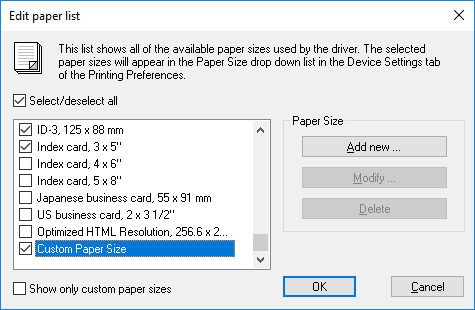

The user can add, delete, and redefine additional paper sizes using the Edit paper list … option. These standard paper sizes cannot be modified or deleted. The paper size only appears in the Paper list drop-down menu if it is selected in the Edit paper list dialog.
The default paper size depends on the Windows Regional Settings. In the USA, Canada, Mexico, the Philippines, and Chile the default paper size is Letter, for all other countries the default paper size is A4.

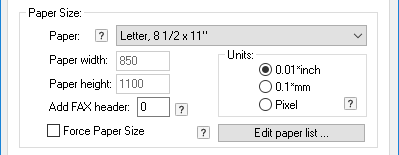

Paper - Select any of the 177 predefined paper sizes. Paper sizes only appear in the Paper list drop-down menu if it is selected in the Edit Paper List dialog.
Paper Width - Paper width is shown in the selected unit type of 0.01 inch, 0.1 mm, or a pixel.
Paper Height - Paper height is shown in the selected unit type of 0.01 inch, 0.1 mm, or a pixel.
Units - Units are the type of measurement used to describe the paper width and height. The units can be 0.01 inch, 0.1 mm, or a pixel.
Add Fax Header - The value entered in the edit box reduces the standard page height by the specified number of pixels. This option can be used to attach private page header information on the top of each page. For example, if the page height is 2200 pixels and the fax header field is set to 50, the generated image height is set to 2150 pixels. The maximum value for the fax header is 99 pixels.
Force Paper Size - When enabled, the documents will always be printed using the paper size and resolution settings specified, regardless of the Paper size and DPI settings of the application. This option is intended to be used with certain applications that ignores the user’s paper settings or if an application unable to print the target paper size. Not recommended for general use.
